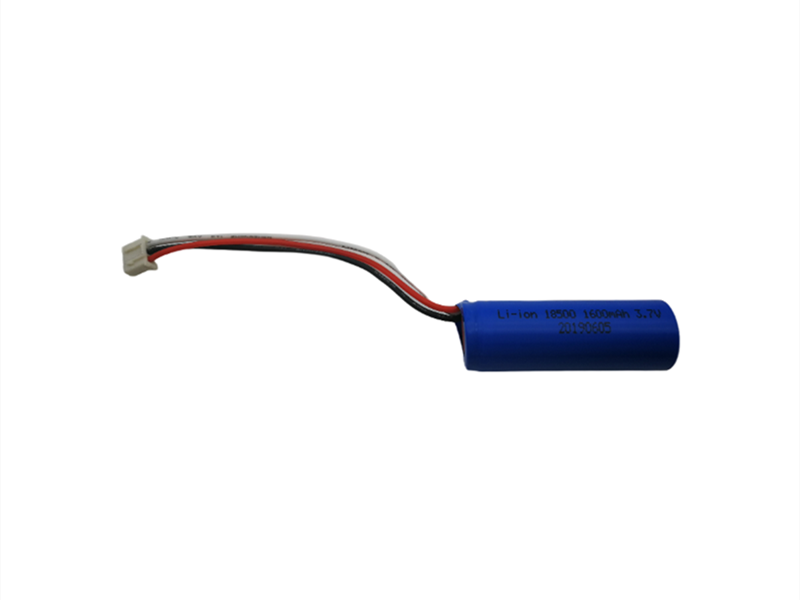

3.7V Cylindrical Lithium Battery Product Model: XL 3.7V 1600mAh
3.7V cylindrical lithium battery technical parameters (specific design according to customer requirements-voltage/capacity/size/line)
Single battery model: 18500
·Single battery voltage: 3.7V
·Nominal voltage after the battery pack is assembled: 3.7V
·Single battery capacity: 1.6Ah
·Battery combination: 1 string and 1 parallel
·Battery voltage range after combination: 2.5~4.2V
·Battery capacity after combination: 1.6Ah
· Battery pack power: 5.92Wh
·Battery pack size: 19*20*50mm
·Maximum discharge current: <1.6A
·Instantaneous discharge current: 3.2~4.8A
·Maximum charging current: 0.2~0.5C
·Charging and discharging times: >500 times
·Main chip: (Seiko, TI)
3.7V cylindrical lithium battery
· Conform to relevant national or international battery standards
· All battery products are tested befor﷽e leaving the factory
