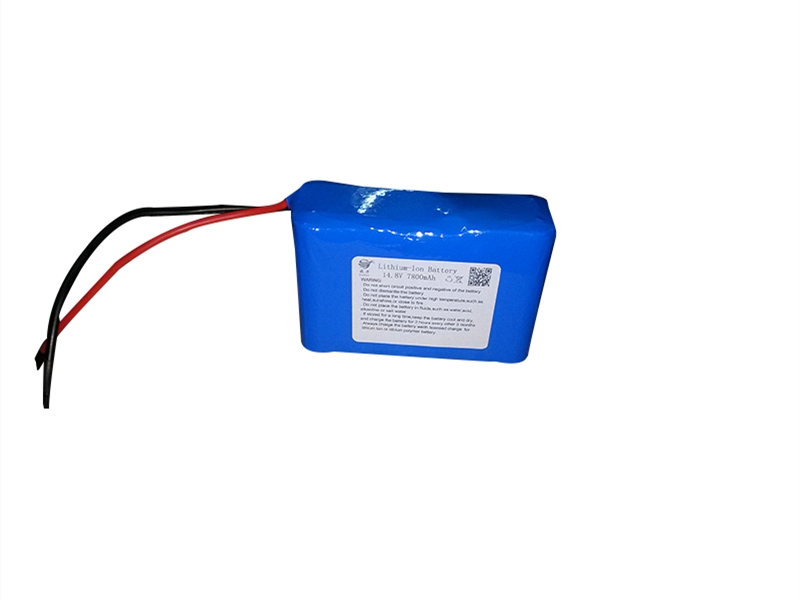

14.8V cylindrical lithium battery Product model: XL 14.8V 7800mAh
Technical parameters of 14.8V cylindrical lithium battery (specific design according to customer requirements-voltage/capacity/size/line)
Single battery model: 18650
·Single battery voltage: 3.7V
·Nominal voltage after the battery pack is assembled: 14.8V
·Single battery capacity: 2.6Ah
·Battery combination mode: 4 strings and 3 parallels
·Battery voltage range after combination: 10~16.8V
·Battery capacity after combination: 7.8Ah
·Battery pack power: 115.44Wh
·Battery pack size: 56*76*68mm
·Maximum discharge current: <7.8A
·Instantaneous discharge current: 15.6~23.4A
·Maximum charging current: 0.2~0.5C
·Charging and discharging times: >500 times
·Main chip: (Seiko, TI)
14.8V cylindrical lithium battery
· Conform to relevant national or international battery standards
· All battery products are ꦏ; tested before leaving the factory
