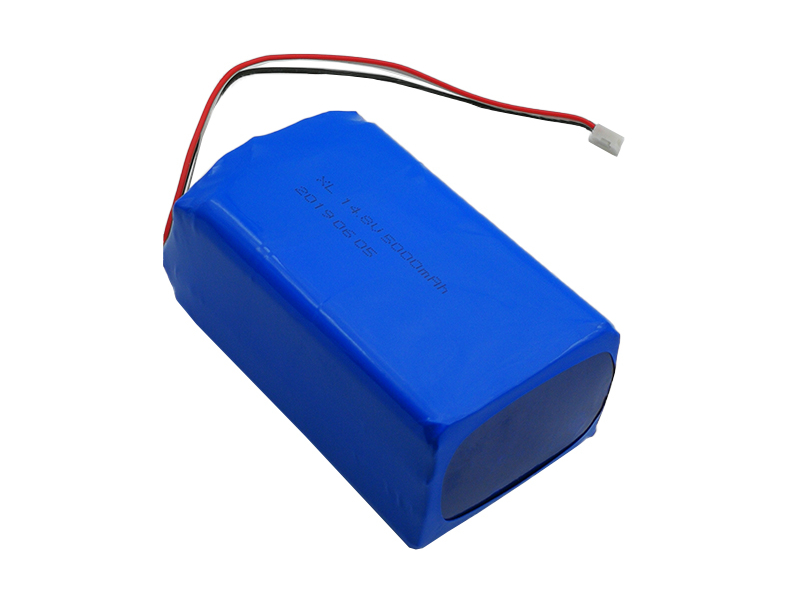

14.8V Cylindrical Lithium Battery Product Model: XL 14.8V 5000mAh
Technical parameters of 14.8V cylindrical lithium battery (specific design according to customer requirements-voltage/capacity/size/line)
Single battery model: 18650
·Single battery voltage: 3.7V
·Nominal voltage after the battery pack is assembled: 14.8V
·Single battery capacity: 2.5Ah
·Battery combination: 4 strings and 2 parallels
·Battery voltage range after combination: 10~6.8V
·Battery capacity after combination: 5Ah
·Battery pack power: 74Wh
·Battery pack size: 55.5*74*134mm
·Maximum discharge current: <5A
·Instantaneous discharge current: 10~15A
·Maximum charging current: 0.2~0.5C
·Charging and discharging times: >500 times
·Main chip: (Seiko, TI)
14.8V cylindrical lithium battery
· Conform to relevant national or international battery standards
·🌌 All battery products are tested෴ before leaving the factory
