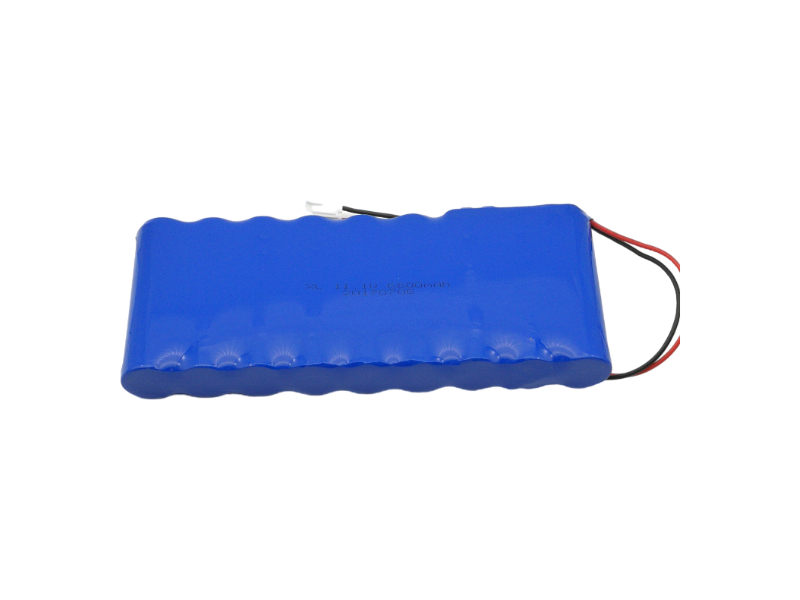

11.1V Cylindrical Lithium Battery Product Model: XL 11.1V 6600mAh
11.1V cylindrical lithium battery technical parameters (specific design according to customer requirements-voltage/capacity/size/line)
Single battery model: 18650
·Single battery voltage: 3.7V
·Nominal voltage after the battery pack is assembled: 11.1V
·Single battery capacity: 2.2Ah
·Battery combination mode: 3 strings and 3 parallels
·Battery voltage range after combination: 7.5~12.6V
·Battery capacity after combination: 6.6Ah
·Battery pack power: 73.26Wh
·Battery pack size: 22* 167 * 69mm
·Maximum discharge current: <6.6A
·Instantaneous discharge current: 13.2~19.8A
·Maximum charging current: 0.2~0.5C
·Charging and discharging times: >500 times
·Main chip: (Seiko, TI)
11.1V cylindrical lithium battery
· Conform to relevant national or international battery standards
&nbs🌳p;· All battery products are tested before leaving the factory
