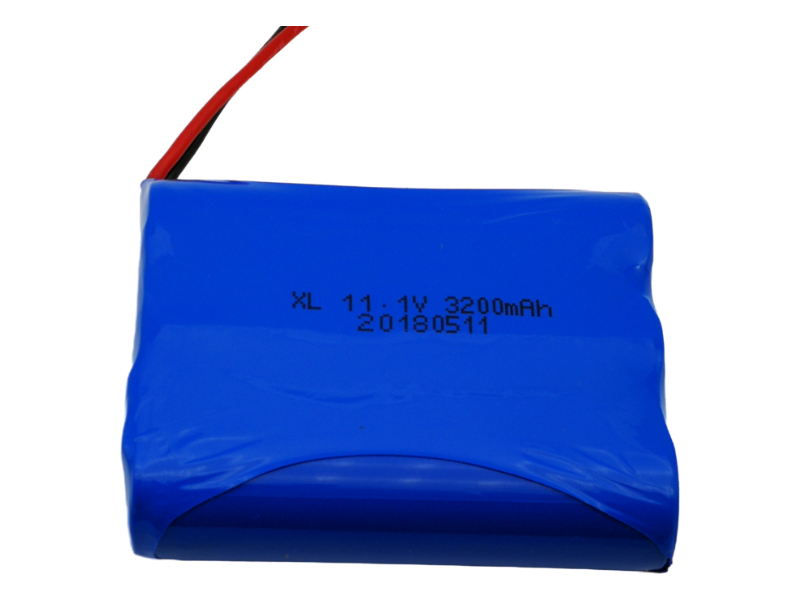

11.1V Cylindrical Lithium Battery Product Model: XL 11.1V 3200mAh
11.1V cylindrical lꦯithium battery technical𝐆 parameters (specific design according to customer requirements-voltage/capacity/size/line)
Single battery model: 18650
·Single battery voltage: 3.7V
·Nominal voltage after the battery pack is assembled: 11.1V
·Single battery capacity: 3.2Ah
·Battery combination: 3 strings and 1 parallel
·Battery voltage range after combination: 7.2~12.6V
·Battery capacity after combination: 3.2Ah
·Battery pack power: 35.52Wh
·Battery pack size: 20*56*67mm
·Maximum discharge current: <3.2A
·Instantaneous discharge current: 6.4~9.6A
·Maximum charging current: 0.2~0.5C
·Charging and discharging times: >500 times
·Main chip: (Seiko, TI)
11.1V cylindrical lithium battery
· Conform to relevant national or international battery standards
· All battery products are tested bef﷽ore leaving the factory
