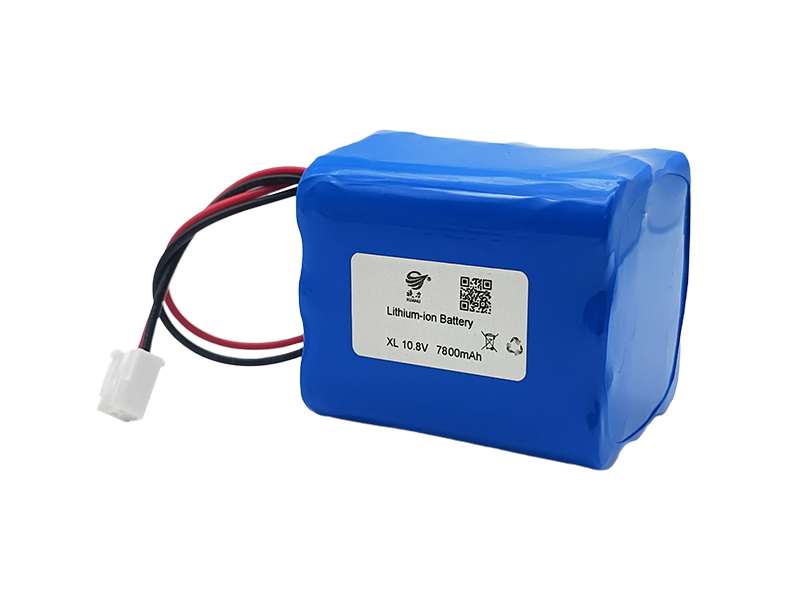

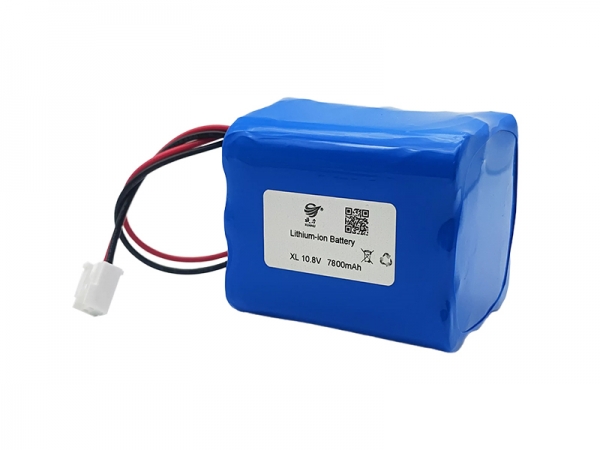

10.8V cylindrical lithium battery model: XL 10.8V 7800mAh
10.8V cylindrical lithium battery technical parameters (specific design according to customer requirements - voltage/capacity/size/line)
Single battery model: 18650
· Single battery voltage: 3.6V
· Nominal voltage after battery pack combination: 10.8V
· Battery capacity: 2.6Ah
· Battery combination: 3 series 3 parallel
· Battery voltage range after combination: 7.5~12.6V
· Combined battery capacity: 7.8Ah
· Battery pack power: 84.24Wh
· Battery pack size: 56* 59 * 69mm
· Maximum discharge current: <7.8A
· Instantaneous discharge current: 15.6~23.4A
· Maximum charging current: 0.2~0.5C
· Charge and discharge times: > 500 times
· Main chips: (Seiko, TI)
10.8V cylindrical lithium battery
· Conform to relevant national or international battery standards
· All battery products are tested before leaving the factory
