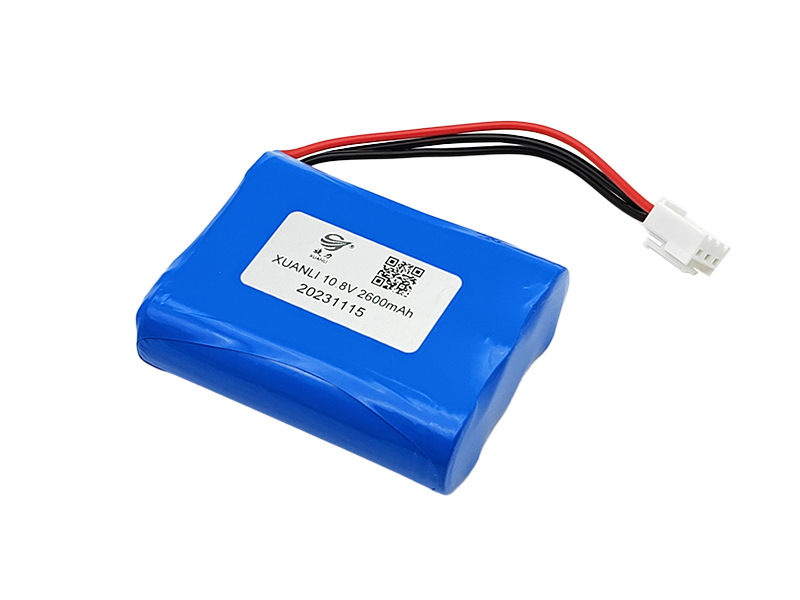

10.8V cylindrical lithium battery Model: XL 10.8V 2600mAh
10.8V cylindrical lithium battery technical parameters (specific design according to customer requirements - voltage/capacity/size/line)
Single battery model: 18650
· Single battery voltage: 3.7V
· Nominal voltage after battery pack combination: 10.8V
· Battery capacity: 2.6Ah
· Battery combination: 3 series and 1 parallel
· Battery voltage range after combination: 7.5~12.6V
· Combined battery capacity: 2.6Ah
· Battery pack power: 28.08Wh
· Battery pack size: 20*56*67mm
· Maximum discharge current: <2.6A
· Instantaneous discharge current: 5.2~7.8A
· Maximum charging current: 0.2~0.5C
· Charge and discharge times: > 500 times
· Main chips: (Seiko, TI)
10.8V cylindrical lithium battery
· Conform to relevant national or international battery standards
· All battery products are tested before leaving the factory
